Glass clear screen
CAIYI- Crystal film screen series
Resume：
Transparent, transparent, invisible, easy to install, widely used in Windows, curtain walls, and other indoor scenes requiring greater permeability
Introduce：
CAIYI- The advantages of the crystal Film Screen series

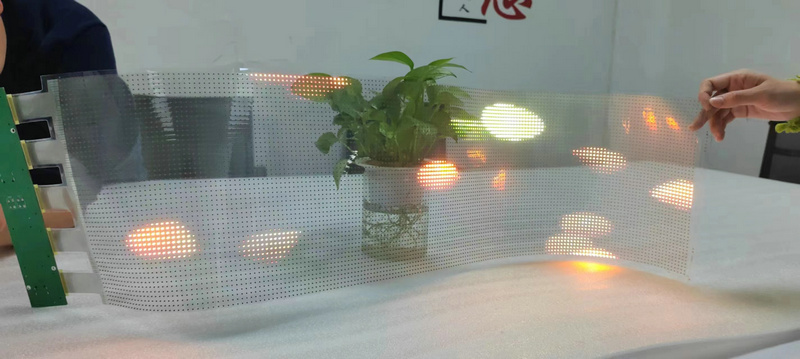

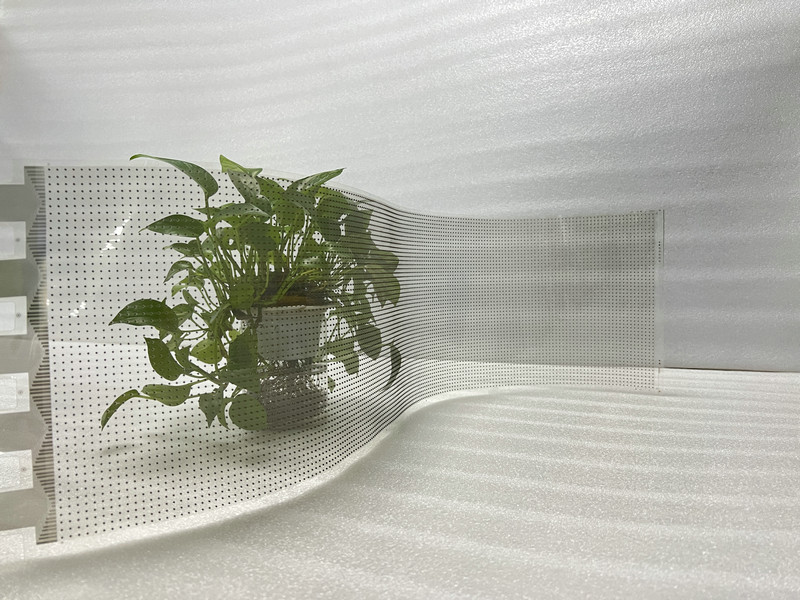

● Crystal film screen using LED light bead naked crystal planting ball technology, light board using transparent crystal film film, surface etched transparent mesh circuit, surface after pasting components vacuum sealing process, products with light and thin, bending and cutting as the main advantages
● Can be directly attached to the glass curtain wall, size can be cut, do not damage the original structure of the building
● When not playing, the screen body is invisible. When watching from a distance, you can not see the installation trace of the screen body. The thickness of the LED crystal screen is only 1.2mm
● Product model: CAIYI-P4-8/CAIYI-P5-10/CAIYI-P6.5/CAIYI-P8/CAIYI-P10/CAIYI-P16/CAIYI-P20/CAIYI-P30
1
Product model
CAIYI-P4-8
CAIYI-P5-10
CAIYI-P6.5
CAIYI-P8
CAIYI-P10
CAIYI-P16
CAIYI-P20
CAIYI-P30
2
Pixel spacing
4*8mm
5*10mm
6.5*6.5mm
8*8mm
10*10mm
15.625*15.625mm
20*20mm
30*30mm
3
LED-Luminescent tube
SMD2121
SMD2121
SMD2121
SMD2121
SMD2121
SMD2121
SMD2121
SMD2121
4
Pixel composition
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
5
Pixel density
31250dot/㎡
20000dot/㎡
27777dot/㎡
15625dot/㎡
10000dot/㎡
3906dot/㎡
2500dot/㎡
1111dot/㎡
6
Driver IC
Constant current
Constant current
Constant current
Constant current
Constant current
Constant current
Constant current
Constant current
7
Scanning mode
static
static
static
static
static
static
static
static
8
Module size
1000*240mm
1000*240mm
1000*208mm
1000*240mm
1000*240mm
1008*240mm
1000*240mm
1020*240mm
9
Module resolution
250*30dot
200*24dot
154*37dot
125*30dot
100*24dot
64*15dot
50*12dot
34*8dot
10
Permeability
≥85%
≥85%
≥85%
≥85%
≥90%
≥90%
≥90%
≥95%
11
Protection class
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
12
Peak power consumption
400W/㎡
400W/㎡
400W/㎡
400W/㎡
400W/㎡
400W/㎡
400W/㎡
400W/㎡
13
Average power consumption
200W/㎡
200W/㎡
200W/㎡
200W/㎡
200W/㎡
200W/㎡
200W/㎡
200W/㎡
14
Flatness
Joint between modules <0.1mm
Joint between modules <0.1mm
Joint between modules <0.1mm
Joint between modules <0.1mm
Joint between modules <0.1mm
Joint between modules <0.1mm
Joint between modules <0.1mm
Joint between modules <0.1mm
15
Average life span
100,000 hours
100,000 hours
100,000 hours
100,000 hours
100,000 hours
100,000 hours
100,000 hours
100,000 hours
16
Power supply requirement
220V±10%
220V±10%
220V±10%
220V±10%
220V±10%
220V±10%
220V±10%
220V±10%
17
Screen brightness
≥4000cd/m2
≥3500cd/m2
≥3000cd/m2
≥3500cd/m2
≥3500cd/m2
≥3500cd/m2
≥3000cd/m2
≥1500cd/m2
18
Viewing distance
The image can be clearly seen at a distance of 4m ~ 100m
The image can be clearly seen at a distance of 5m ~ 100m
The image can be clearly seen at a distance of 6.5m ~ 100m
The image can be clearly seen at a distance of 8m ~ 100m
The image can be clearly seen at a distance of 10m ~ 100m
The image can be clearly seen at a distance of 16m ~ 100m
The image can be clearly seen at a distance of 20m ~ 100m
The image can be clearly seen at a distance of 30m ~ 100m
19
Perspective
Horizontal 140, vertical 140
Horizontal 140, vertical 140
Horizontal 140, vertical 140
Horizontal 140, vertical 140
Horizontal 140, vertical 140
Horizontal 140, vertical 140
Horizontal 140, vertical 140
Horizontal 140, vertical 140
20
Gray level
16bits
16bits
16bits
16bits
16bits
16bits
16bits
16bits
21
White field color temperature
3200K-8500K（可調）
3200K-8500K（可調）
3200K-8500K（可調）
3200K-8500K（可調）
3200K-8500K（可調）
3200K-8500K（可調）
3200K-8500K（可調）
3200K-8500K（可調）
22
Refresh frequency
≥3840HZ
≥3840HZ
≥3840HZ
≥3840HZ
≥3840HZ
≥3840HZ
≥3840HZ
≥3840HZ
23
Frame change frequency
Greater than 60HZ
Greater than 60HZ
Greater than 60HZ
Greater than 60HZ
Greater than 60HZ
Greater than 60HZ
Greater than 60HZ
Greater than 60HZ
24
Control system
synchronization
synchronization
synchronization
synchronization
synchronization
synchronization
synchronization
synchronization
25
Use a ring mirror
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH
CAIYI- Crystal film screen series Panel Specification
◆ Storage environment: -40 ~ +85 ℃/ 10 ~ 90% RH
◆ Storage environment: -40 ~ +85 ℃/ 10 ~ 90% RH
◆ Storage environment: -40 ~ +85 ℃/ 10 ~ 90% RH
◆ Storage environment: -40 ~ +85 ℃/ 10 ~ 90% RH
◆ Storage environment: -40 ~ +85 ℃/ 10 ~ 90% RH
◆ Storage environment: -40 ~ +85 ℃/ 10 ~ 90% RH
◆ Storage environment: -40 ~ +85 ℃/ 10 ~ 90% RH
◆ Storage environment: -40 ~ +85 ℃/ 10 ~ 90% RH
