Glass clear screen
CAIYI- Transparent screen series
Resume：
Fully, pervious to light, stealth, convenient installation, should be widely in the window, curtain wall, sightseeing elevator, commercial center atrium, indoor hall, etc
Introduce：
CAIYI- The advantage of transparent screen in case unit
● High permeability, LED transparent screen has up to 65%-90% permeability, no shading, far seemingly nothing
● Lightweight design, LED transparent screen is extremely lightweight design, weight per square is only 12KG, greatly reduce the dependence on steel structure, ultra-high cost performance
● Bricklaying installation, convenient installation, single lamp module replacement and repair, easy maintenance
● Installation mode, can be hanging installation, floor installation, glass curtain wall hidden installation

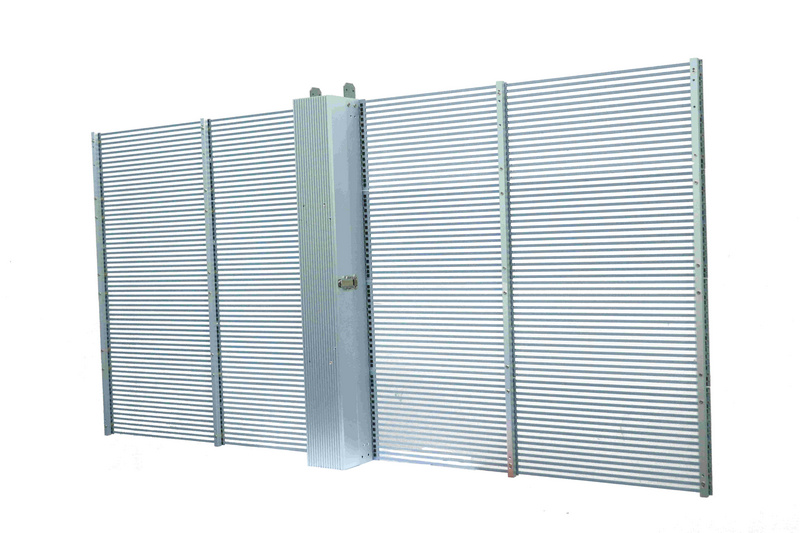

Box color, regular optional silver or black, special color support custom
● Product model: CAIYI-P2.6-5.2/CAIYI-P2.84-5.62/CAIYI-P3.9-7.8/CAIYI-P7.8-7.8/CAIYI-P10.4-10.4
●LED transparent screen with its own characteristics, in the glass curtain wall, stage display, large building and commercial space and window new media and other fields of application
|
CAIYI- Box unit transparent screen series Panel Specification |
||||||
|
1 |
Product model |
CAIYI-P2.6-5.2 |
CAIYI-P2.84-5.62 |
CAIYI-P3.9-7.8 |
CAIYI-P7.8-7.8 |
CAIYI-P10.4-10.4 |
|
2 |
Pixel spacing |
2.6*5.2mm |
2.84*5.62mm |
3.91*7.82mm |
7.82*7.82mm |
10.42*10.42mm |
|
3 |
LED-Luminescent tube |
SMD2020/SMD1921 |
SMD2020/SMD1921 |
SMD2020/SMD1921 |
SMD1921 |
SMD2727 |
|
4 |
Pixel composition |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
5 |
Pixel density |
73728dot/㎡ |
61952dot/㎡ |
32768dot/㎡ |
16384dot/㎡ |
9216dot/㎡ |
|
6 |
Driver IC |
Constant current |
Constant current |
Constant current |
Constant current |
Constant current |
|
7 |
Scanning mode |
12S |
11S |
16S |
4S |
2S |
|
8 |
Module size |
500*125mm |
500*125mm |
500*125mm |
500*125mm |
500*125mm |
|
9 |
Module resolution |
192*24dot |
176*22dot |
128*16dot |
64*16dot |
48*12dot |
|
10 |
Permeability |
＞65% |
＞65% |
≥70% |
≥80% |
≥90% |
|
11 |
Box size |
1000*1000mm 1000*500mm |
1000*1000mm 1000*500mm |
1000*1000mm 1000*500mm |
1000*1000mm 1000*500mm |
1000*1000mm 1000*500mm |
|
12 |
Box resolution |
384*192dot 384*384dot |
352*176dot 352*86dot |
256*128dot 256*64dot |
128*128dot 128*64dot |
96*96dot 96*48dot |
|
13 |
Protection class |
IP30 |
IP30 |
IP30 |
IP30 |
IP30 |
|
14 |
Peak power consumption |
800W/㎡ |
800W/㎡ |
600W/㎡ |
800W/㎡ |
800W/㎡ |
|
15 |
Average power consumption |
400W/㎡ |
400W/㎡ |
300W/㎡ |
400W/㎡ |
400W/㎡ |
|
16 |
Flatness |
Joint between modules <0.5mm |
Joint between modules <0.5mm |
Joint between modules <0.5mm |
Joint between modules <0.5mm |
Joint between modules <0.5mm |
|
17 |
Average life span |
100,000 hours |
100,000 hours |
100,000 hours |
100,000 hours |
100,000 hours |
|
18 |
Power supply requirement |
220V±10% |
220V±10% |
220V±10% |
220V±10% |
220V±10% |
|
19 |
Screen brightness |
1500cd/m² 5000cd/m² |
1500cd/m² 5000cd/m² |
700cd/m² 2500cd/m² |
4500cd/m² |
4500cd/m² |
|
20 |
Perspective |
Horizontal 140, vertical 140 |
Horizontal 140, vertical 140 |
Horizontal 140, vertical 140 |
Horizontal 140, vertical 140 |
Horizontal 140, vertical 140 |
|
21 |
Gray level |
16bits |
16bits |
16bits |
16bits |
16bits |
|
22 |
Refresh frequency |
1920HZ |
1920HZ |
1920HZ |
≥1920HZ |
≥1920HZ |
|
23 |
Frame change frequency |
Greater than 60HZ |
Greater than 60HZ |
Greater than 60HZ |
Greater than 60HZ |
Greater than 60HZ |
|
24 |
Control system |
synchronization |
synchronization |
synchronization |
synchronization |
synchronization |
|
25 |
Use a ring mirror |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
