CAIYI-Multimedia control intelligent management system
Resume：
Introduce：

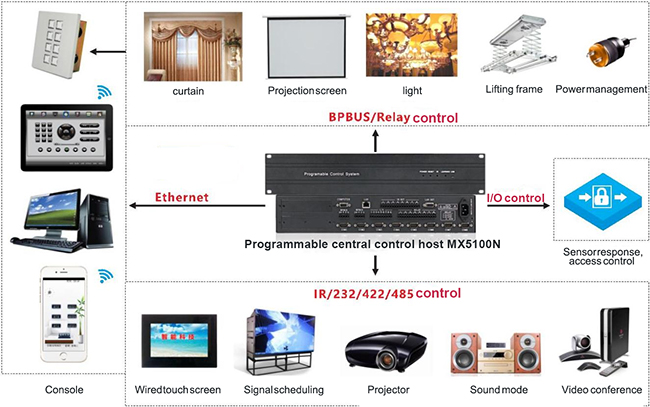

The CAIYI programmable central control system uses an industrial-grade 32-bit embedded ARM chain with a main frequency of 200MIPS. Configuration of large memory can quickly process complex logic instructions, powerful built-in programmable interface, so that BPCC can control almost all external devices (including third-party devices), the unique BPBUS bus system can expand up to 256 network devices. Support multi-connection built-in network card, convenient for multiple IPAD, IPHONE and other devices to connect to the host, ready to send TCP/IP and UDP codes. Support centralized management of meeting rooms. Application: conference room, command and control center, exhibition hall, large coal body conference hall, etc
•8 infrared transmitting ports, each independent of the other (only one infrared port can be active at any one time)
•8 independent digital inputs input to the file I/O port. Input and output voltage range DC0-5V. Current 0-10mA;
• 8-way 15-stand weak current relay interface;
• 8-way two-way programmable RS-232/422/485 communication interface;
•1 RS232 auxiliary program transmission connection □:
• Download user programs over the Internet;
• An Ethernet interface (TCPIP protocol support) for connecting WIFI devices such as ipads, which can support up to 16 ipads and other WIFI devices;
• The touch screen is connected to the host simultaneously;
• Support for sending TCP/IP and UDP codes;
• A matrix control module that can complete a matrix control program in 5 minutes;
• Support centralized management of meeting rooms: centralized query of workpiece status of multiple meeting rooms, and one-click shutdown of meeting room equipment;
• Users establish their own infrared code database, which can realize the infrared logic control such as one-key issuance of double codes, and larger infrared storage space.
• Timer locking function can be set;
• Provide an open editable control platform, humanized Chinese operation interface and interactive control structure;
• Support Android, IPAD, PHONE, wired touch screen, wall switch and other control interface
Technical Parameter
CPU 200MIPS Industrial-grade ARM926CPU
Memory 64MSDRAM 4M NORFLASH
Operating temperature 5-45℃
Operating humidity range 10% to 90% RH
IO interface level Input/output voltage range DC 0-5V, current 0-10mA
Infrared carrier 3.8KHZ
Power supply 110-240 VAC 65W Adaptive power supply
The bus output power supply DC 24 V 1A
Standard size 2 u chassis
Weight 2.5KG
Safety guanantee
International wide adapter power supply design (AC100-240V), support seamless integration of CCSEB technology, withstand the test of high temperature freezing and other harsh use environment, 2U black piano paint chassis design, high pressure security, can be fixed to any 19 inch cabinet.
