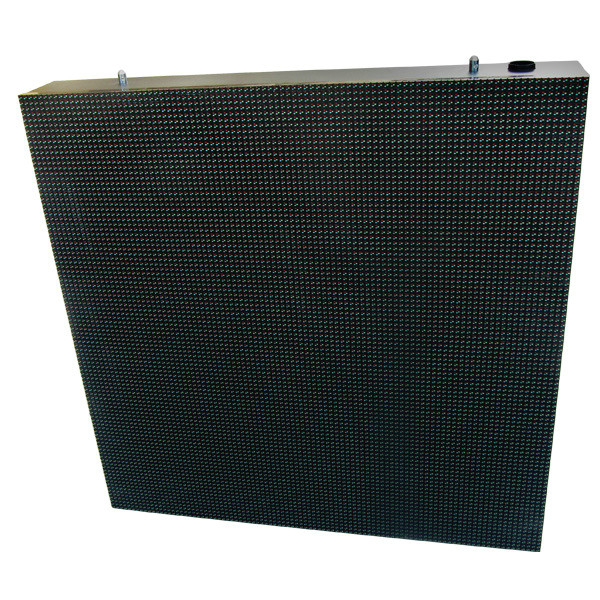

Outdoor mounted LED display screen
CAIYI- Outdoor energy-saving screen series
Resume：
DIP in-line light emitting tube is adopted, which is designed with high brightness, high reliability and low energy consumption, saving 60% energy compared with the conventional household appearance, low carbon and environmental protection, saving the use cost for customers
Introduce：
CAIYI- Advantage of outdoor energy-saving screen series
Mature and reliable SMT process and DIP in-line process
● Using the industry's first line of high-end energy-saving light-emitting tube, energy-saving circuit design and low-voltage driving power supply, according to different models of power consumption is only 30%~50% of the conventional outdoor screen
● Seamless stitching, high-definition picture quality, RGB deep gray processing, rich color, high-definition exquisite picture quality, high gray high refresh configuration, to meet the 3D screen design
● With IP65 protection grade, fear of any bad weather, ultra high brightness, waterproof, UV protection, high temperature protection, suitable for all-weather outdoor environment
● Low calorific value, no air conditioning, long life, high reliability
● Product model CAIYI-P10/CAIYI-P16
● Suitable for advertising media, municipal publicity, public transport and other outdoor application scenarios
|
CAIYI- Outdoor energy-saving screen series Panel Specification |
|||
|
Use environment：OUTDOOR |
|||
|
1 |
Product model |
CAIYI-P10 |
CAIYI-P16 |
|
2 |
Pixel spacing |
10mm |
16mm |
|
3 |
LED-Luminescent tube |
DIP346 |
DIP346 |
|
4 |
Pixel composition |
1R1G1B |
1R1G1B |
|
5 |
Pixel density |
10000dot/㎡ |
3906dot/㎡ |
|
6 |
Driver IC |
Constant current |
Constant current |
|
7 |
Scanning mode |
4S |
static |
|
8 |
Module size |
320*160mm |
256*256mm |
|
9 |
Module resolution |
32*16dot |
16*16dot |
|
10 |
Box size |
960*960mm |
1024*1024mm |
|
11 |
Box resolution |
96*96dot |
64*64dot |
|
12 |
Peak power consumption |
380W/㎡ |
450W/㎡ |
|
13 |
Average power consumption |
100W/㎡ |
150W/㎡ |
|
14 |
Protection class |
IP65 |
IP65 |
|
15 |
Flatness |
Joint between modules <0.1mm |
Joint between modules <0.1mm |
|
16 |
Average life span |
100,000 hours |
100,000 hours |
|
17 |
Power supply requirement |
220V±10% |
220V±10% |
|
18 |
Screen brightness |
≥8000cd/㎡ |
≥8000cd/㎡ |
|
19 |
Viewing distance |
The image can be clearly seen at a distance of10m ~ 100m |
The image can be clearly seen at a distance of16m ~ 100m |
|
20 |
Perspective |
Horizontal 140, vertical 140 |
Horizontal 140, vertical 140 |
|
21 |
Gray level |
14bits |
14bits |
|
22 |
White field color temperature |
5500K-10000K(adjustable) |
5500K-10000K(adjustable) |
|
23 |
Refresh frequency |
≥1600HZ |
≥1600HZ |
|
24 |
Frame change frequency |
Greater than 60HZ |
Greater than 60HZ |
|
25 |
Control system |
synchronization |
synchronization |
|
26 |
Use a ring mirror |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
