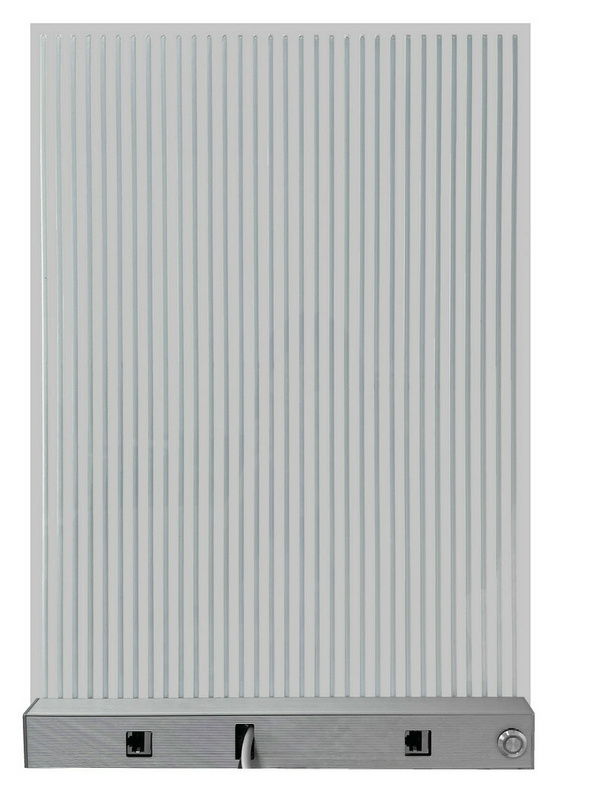

Glass clear screen
CAIYI- Film screen series
Resume：
Transparent, transparent, invisible, easy to install, widely used in Windows, curtain walls, and other indoor scenes requiring greater permeability
Introduce：
The advantages of CAIYI- film screen series

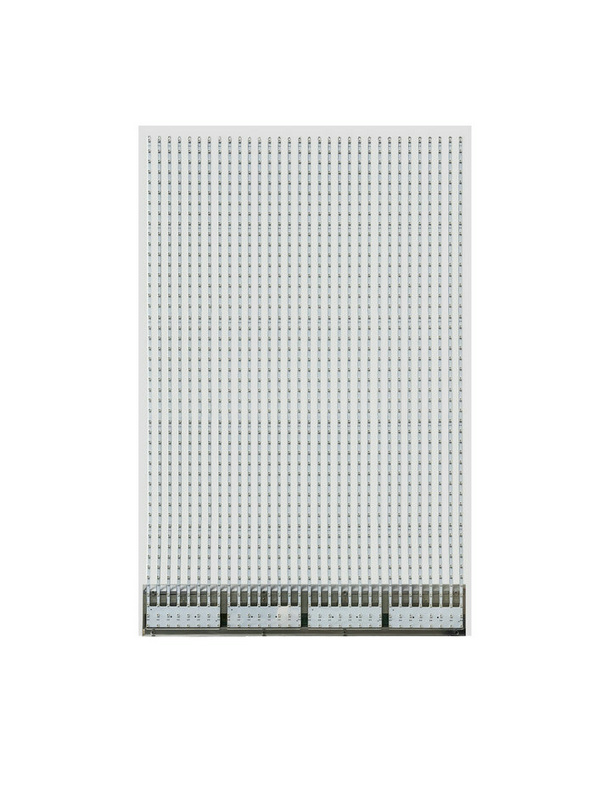

● The film screen adopts a specific bare chip, and the components are fixed on the high transparency PCB board. Through the unique cover glue process, the display module is integrated into a high transparency lens type substrate with a minimum thickness of 1~3mm and light emitting display.
Without being limited by the size, according to the need of the glass can be cut to size of sticker required length

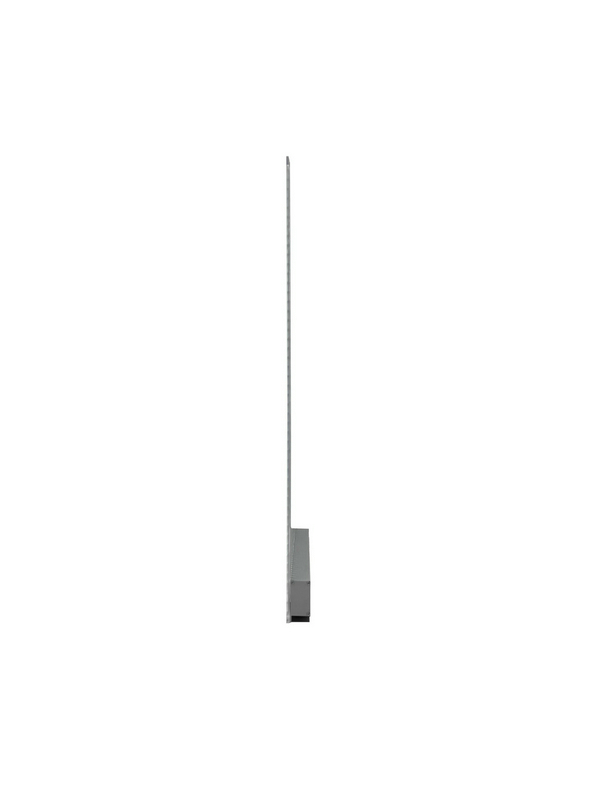

Ultrathin, super light, the thickness of only 1 to 3 mm, 1-4 kg/square metre only
● Anti-fall and anti-collision, the screen body adopts flexible materials, which can prevent internal components from falling and cracking, and the square meter can withstand external impact
● Product model: CAIYI-P4-8/CAIYI-P5-10/CAIYI-P6.5/CAIYI-P8/CAIYI-P10/CAIYI-P16/CAIYI-P20
|
CAIYI- Film screen series Panel Specification |
||||||||
|
1 |
Product model |
CAIYI-P4-8 |
CAIYI-P5-10 |
CAIYI-P6.5 |
CAIYI-P8 |
CAIYI-P10 |
CAIYI-P16 |
CAIYI-P20 |
|
2 |
Pixel spacing |
4-8mm |
5-10mm |
6.5mm |
8mm |
10mm |
16mm |
20mm |
|
3 |
LED-Luminescent tube |
SMD2121 |
SMD2121 |
SMD2121 |
SMD2121 |
SMD2121 |
SMD2121 |
SMD2121 |
|
4 |
Pixel composition |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
5 |
Pixel density |
31250dot/㎡ |
20000dot/㎡ |
23716dot/㎡ |
15625dot/㎡ |
10000dot/㎡ |
3906dot/㎡ |
2500dot/㎡ |
|
6 |
Driver IC |
Constant current |
Constant current |
Constant current |
Constant current |
Constant current |
Constant current |
Constant current |
|
7 |
Scanning mode |
static |
static |
static |
static |
static |
static |
static |
|
8 |
Module size |
960*256mm |
960*320mm |
960*208mm |
960*256mm |
960*320mm |
960*256mm |
960*320mm |
|
9 |
Module resolution |
240*32dot |
192*32dot |
148*32dot |
120*32dot |
96*32dot |
60*16dot |
48*16dot |
|
10 |
Permeability |
65% |
80% |
60% |
70% |
80% |
85% |
90% |
|
11 |
Protection class |
IP61 |
IP61 |
IP61 |
IP61 |
IP61 |
IP61 |
IP61 |
|
12 |
Peak power consumption |
800W/㎡ |
700W/㎡ |
800W/㎡ |
700W/㎡ |
700W/㎡ |
300W/㎡ |
280W/㎡ |
|
13 |
Average power consumption |
300W/㎡ |
280W/㎡ |
300W/㎡ |
280W/㎡ |
260W/㎡ |
150W/㎡ |
120W/㎡ |
|
14 |
Flatness |
Joint between modules <0.1mm |
Joint between modules <0.1mm |
Joint between modules <0.1mm |
Joint between modules <0.1mm |
Joint between modules <0.1mm |
Joint between modules <0.1mm |
Joint between modules <0.1mm |
|
15 |
Average life span |
100,000 hours |
100,000 hours |
100,000 hours |
100,000 hours |
100,000 hours |
100,000 hours |
100,000 hours |
|
16 |
Power supply requirement |
220V±10% |
220V±10% |
220V±10% |
220V±10% |
220V±10% |
220V±10% |
220V±10% |
|
17 |
Screen brightness |
≥5000cd/m² |
≥5000cd/m² |
≥5000cd/m² |
≥4500cd/m² |
≥5000cd/m² |
≥3000cd/m² |
≥2500cd/m² |
|
18 |
Viewing distance |
The image can be clearly seen at a distance of 4m ~ 100m |
The image can be clearly seen at a distance of 5m ~ 100m |
The image can be clearly seen at a distance of 6.5m ~ 100m |
The image can be clearly seen at a distance of 8m ~ 100m |
The image can be clearly seen at a distance of 10m ~ 100m |
The image can be clearly seen at a distance of 16m ~ 100m |
The image can be clearly seen at a distance of 20m ~ 100m |
|
19 |
Perspective |
Horizontal 140, vertical 140 |
Horizontal 140, vertical 140 |
Horizontal 140, vertical 140 |
Horizontal 140, vertical 140 |
Horizontal 140, vertical 140 |
Horizontal 140, vertical 140 |
Horizontal 140, vertical 140 |
|
20 |
Gray level |
16bits |
16bits |
16bits |
16bits |
16bits |
16bits |
16bits |
|
21 |
White field color temperature |
5500K-9300K |
5500K-10000K |
5500K-9300K |
5500K-9300K |
5500K-9300K |
5500K-10000K |
5500K-10000K |
|
22 |
Refresh frequency |
≥3840HZ |
≥3840HZ |
≥3840HZ |
≥3840HZ |
≥3840HZ |
≥3840HZ |
≥3840HZ |
|
23 |
Frame change frequency |
Greater than 60HZ |
Greater than 60HZ |
Greater than 60HZ |
Greater than 60HZ |
Greater than 60HZ |
Greater than 60HZ |
Greater than 60HZ |
|
24 |
Control system |
synchronization |
synchronization |
synchronization |
synchronization |
synchronization |
synchronization |
synchronization |
|
25 |
Use a ring mirror |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
◆ Working environment: -10 ~ +65 ℃/ 10 ~ 90% RH |
